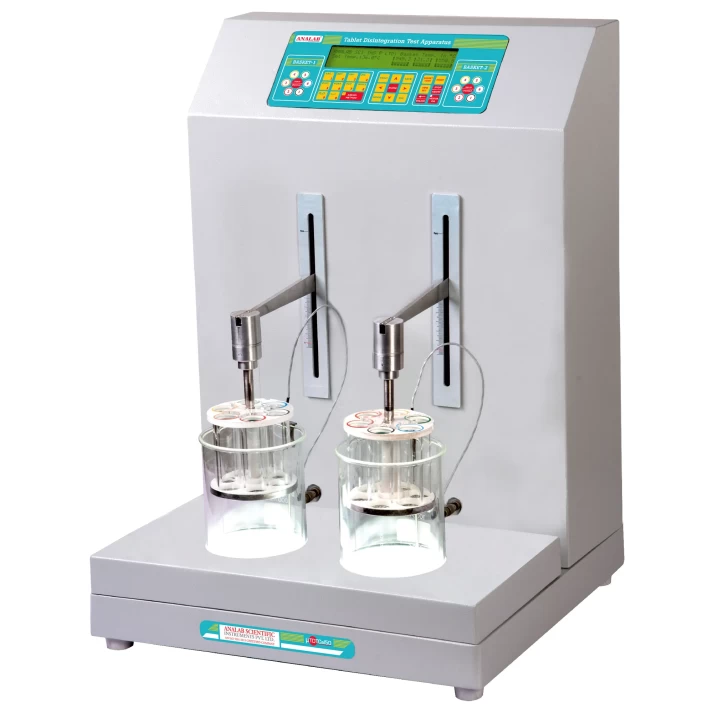

Analab Tablet Dis-Integration Test Apparatus
153000
lakh
(Piece)
MRP:
169800
lakh
Product Overview
| Business Type | Manufacturer, Exporter, Supplier, Distributor, Importer |
| Model | µTDTCal50 |
| Make | ANALAB |
| HSN Code | 90318000 |
Secure Transaction
36 Months Shelf Life
Delivery & Return
Estimated Delivery
International: 12-26 days
Domestic: 3-6 days
Return Policy
Return within 7 days
Duties & taxes non-refundable
Technical Specification
- Stroke Length : 55mm ±2mm
- Number of Stroke Frequency Rate : 30 ± 2 Stroke Per Min.
- Heating Technology : Bathless
- Temperature Range : 5ºC (41 F) above ambient to 60ºC (140 F)
- Temperature Resolution : 0.1°C
- Programmable Timer : 1 sec. to 9 hrs.: 59 min.: 59 sec.
- Heating time to 37°C : Less than 20 min.
- Heater Capacity : DC Heater-150 Watt
- Temperature Sensor : PT-100
- Number of Beaker : Two – Capacity 1000 ml
- Number of Motor : Two
- Number of Timer : Two
- Number of Basket : Two (Six Test Tube Per Basket)
- Control of Basket : Independent Motor & Timer for Two Basket
- Display : 40 x 4 Line Alphanumeric Backlit LCD
- Loading of Basket : Magnetised for ease of cleaning
- Illumination : White Light for better visibility of dis-integration process
- Parking of Basket : Automatic after completion of test
- Keypad : Membrane waterproof polycarbonate soft touch keypad compliance to UL/ROHS
- Pharmacopeia Complies : As per USP, IP, Ph. Eur.
- Method : 40 analysis method with View, Print & Delete facility
- Password Protection : Delete Stored Protocol, Delete Stored Data, Date & Time
- Date : 12/24 Hours Format
- Time : Real time clock
- Searching of data : With record number, batch number, Date and by scrolling
- Report Formation : As per GLP Compliance
- Analysis Data Storage : More than 750 data can be store in non-Volatile Memory which can print & view company name, print date and time, analysis date & time, record number, batch number / ID, sample name, username, pharmacopeia, assigned method number, analysis done on, model number, serial number, instrument ID, individual dis-integration time of each sample when you did visually detect the dis-integration of the tested sample by simply pushing the relevant character key (1-6), Basket Set & Actual Temperature, Media Used, etc. Secondly, data can print online without saving analysis data in the instrument.
- Printer Interface : Serial (RS-232 C) Port
- Printer : 40 / 80 Column Dot Matrix Printer (Printer must procure optionally)
- Power Supply : 230VAC ± 10%, 50 Hz
- Dimensions : 460 x 450 x 710 mm (L x W x H)
- Weight : 24.5 Kgs (Net) & 29.0 Kgs (Gross)
