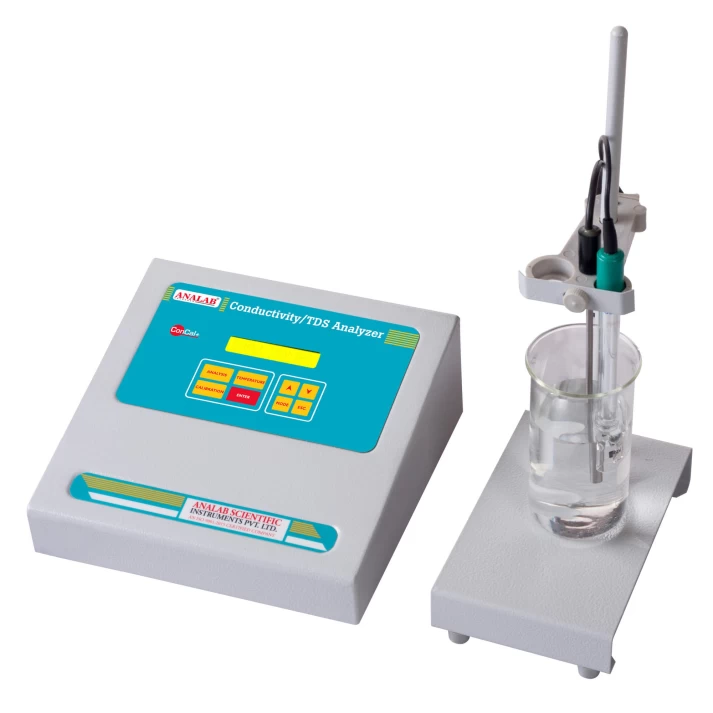

Conductivity Meter
26700
lakh
(Piece)
MRP:
28800
lakh
Product Overview
| Model | uConCal5+ |
| Make | ANALAB |
| HSN Code | 90278990 |
Secure Transaction
36 Months Shelf Life
Delivery & Return
Estimated Delivery
International: 12-26 days
Domestic: 3-6 days
Return Policy
Return within 7 days
Duties & taxes non-refundable
Supplied with Conductivity Cell K = 1.0, Temperature Probe, Electrode Stand consists of Clamp, Base Plate & Rod, Dust Cover, DC Adaptor, Operational & Instruction Manual with SOP, Calibration Test Certificate (Without Traceability Document) and Warranty Card.
Technical Specification
- Conductivity Range :
● 0-20.00, 20-200.0, 200-2000 µS/cm, 2-20.000, 20-200 mS/cm for K=1.0
● 0-10.00, 10-100.0, 100-1000 µS/cm, 1-10.000, 10-100.00 mS/cm for K=0.5
● 0-2.00, 2-20.0, 20-200, 200-2000 µS/cm, 2-20 mS/cm for K=0.1 - Conductivity Resolution : 0.001, 0.01, 0.1 µS/cm & 0.001, 0.01, 0.1 mS/cm
- TDS Range : 0 to 10, 100, 1000, 10000, 100000 ppm
(Range value change depending upon cell selection) - TDS Resolution : 0.001, 0.01, 0.1 ppm & 0.001, 0.01 ppt (1ppt=1000ppm)
- Temperature Range : 0.0 to 130.0°C
- Temperature Resolution : 0.1°C
- Temperature Compensation : Auto / Manual
- Temperature Coefficient : Five - 0-10.000 % per °C (Adjustable) – One Per Range
- Temperature Calibration : In-built software and can be calibrated by users
- Calibration Factor : Five – One Per Range
- Range Selection : Auto / Manual
- Suitable Cell Constant : 0.1, 0.5 & 1.0 K
- Adjustable Cell Constant : 0.09 to 0.11 K, 0.45 to 0.55 K & 0.90 to 1.1 K
- Conductivity to TDS Conversion : 0.40000 to 1.00000 (Adjustable Factor)
- Reading : Conductivity at actual temperature and at 25°C & TDS with scrolling Display.
- Error Messages : “Wrong Standard / Cell”, “Cell Short”, “Cell Open”, “Try Upper Range”, “Try Lower Range” & “Temperature Probe Error”.
- Display : 16 x 2 Line Alphanumeric Backlit LCD.
- Keypad : Membrane waterproof polycarbonate soft touch keypad compliance to UL/ROHS.
- Calibration Data Storage : Non-Volatile Memory which can store & view calibration cell constant, calibration range, standard conductivity solution, measured conductivity at 25°C, actual temperature, calibration factor etc.
- Power Supply : DC Adaptor
- Dimensions:
● Net Dimension: 22 x 21 x 11 cm (L x W x H)
● Gross Dimension: 32 x 29 x 23 cm (L x W x H) - Weight:
● Net Weight: 1.5 kg
● Gross Weight: 3.5 kg
